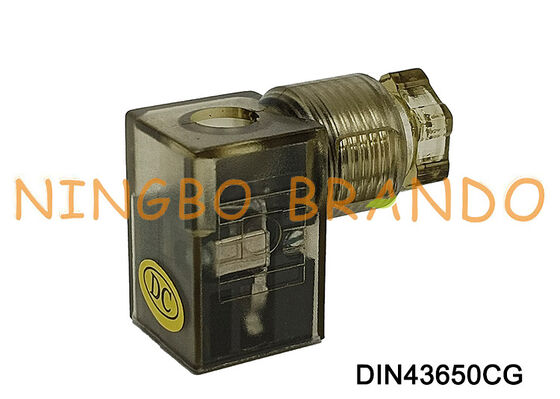

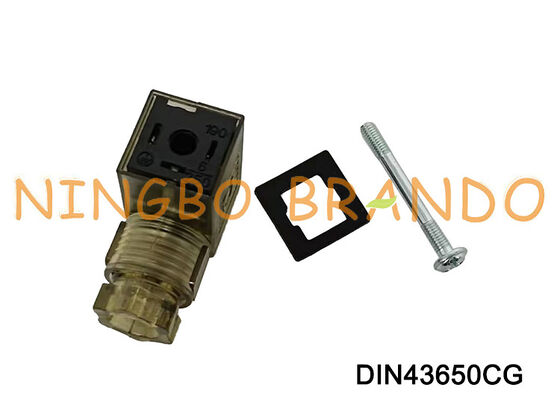

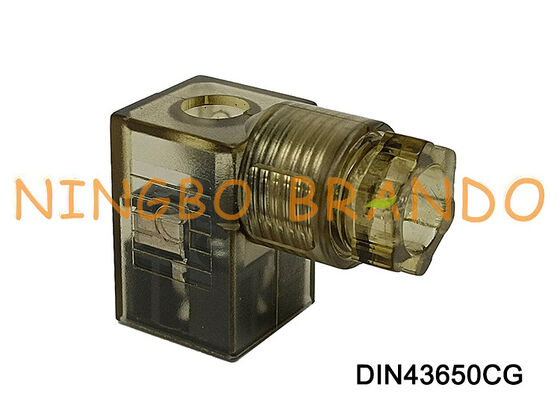

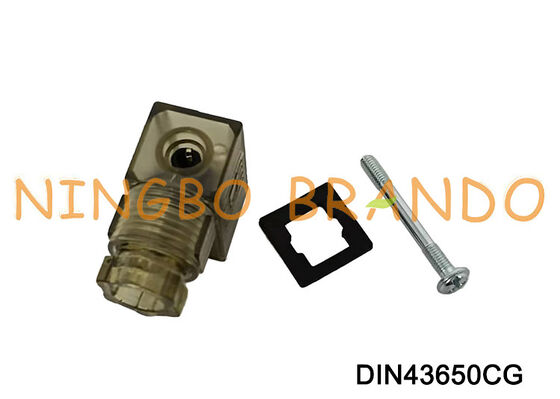

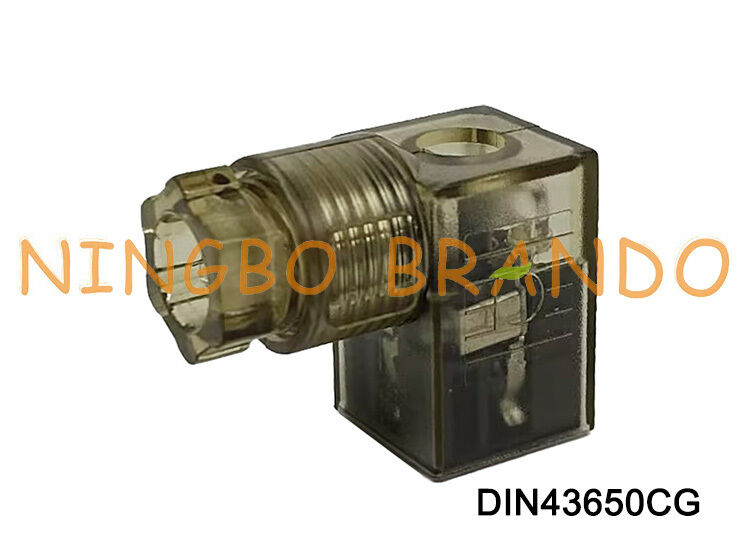

DIN43650C Solenoid Valve Coil Connector 9.4mm MPM Brown DIN 43650 Type C

DIN43650C Solenoid Valve Coil Connector 9.4mm MPM Brown DIN 43650 Type C

DIN 43650 solenoid connectors are durable valve connectors used across a wide range of industrial applications and are usually not affected by voltage surges or electro-magnetic interference.

Available in three formats: Form A, Form B or Form C. DIN 43650 solenoid connectors are designed to function within certain voltage limits. Gasket options for DIN connectors include - oil resistant NBR or ozone and heat resistant EPDM.

DIN 43650 solenoid connectors can be found in many industrial applications including machine building and tooling or equipment manufacturing processes, facilitating power and signal transmission in magnetic valves, sensors and pressure transducers.

Dimension & Data of Solenoid Coil Connector:

DIN 43650A Connector:

Dimension	DIN Type	DIN 43650 Form A
	Distance	18mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x28
	Nomical Current	10A
	Contact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650B Connector:

Dimension	DIN Type	DIN 43650 Form B
	Distance	11mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Srew	M3x30
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650C Connector:

Dimension	DIN Type	DIN 43650 Form C
	Distance	9.4mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x25
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²
