Name: Thermostatic expansion valve Danfoss Type TD1 R134a R22 R407C R404A
Brand: Ningbo Brando Hardware Co., Ltd
SKU: TD 1
Price: 65.00 USD
Availability: InStock

Casa Produtos Válvula de solenoide da refrigeração

Thermostatic expansion valve Danfoss Type TD1 R134a R22 R407C R404A

Detalhes do produto:

Lugar de origem:	China
Marca:	BRANDO
Certificação:	None
Número do modelo:	TD 1

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	5 unidades
Preço:	Negociável
Detalhes da embalagem:	Caixa interna, caixa, palete
Tempo de entrega:	Negociação
Termos de pagamento:	T/T, Western Union, Moneygram
Habilidade da fonte:	100.000 unidades por mês

Contato

Descrição de produto detalhada

Nome do produto:	Válvula de expansão termostática	Tamanho da porta:	1/4", 3/8"
Tamanho do orifício:	3/8", 1/2"	Conexão:	Solda
Líquido refrigerante aplicável:	R134a, R22, R407C, R404A, etc.	Equalização de pressão:	Igualado internamente
Orifício nenhum:	0, 1, 2, 3, 4, 5
Destacar:	Thermostatic expansion valve Danfoss TD1 , Thermostatic expansion valve TD 1 R290 , Angle Port Thermostatic Expansion Valve TD1

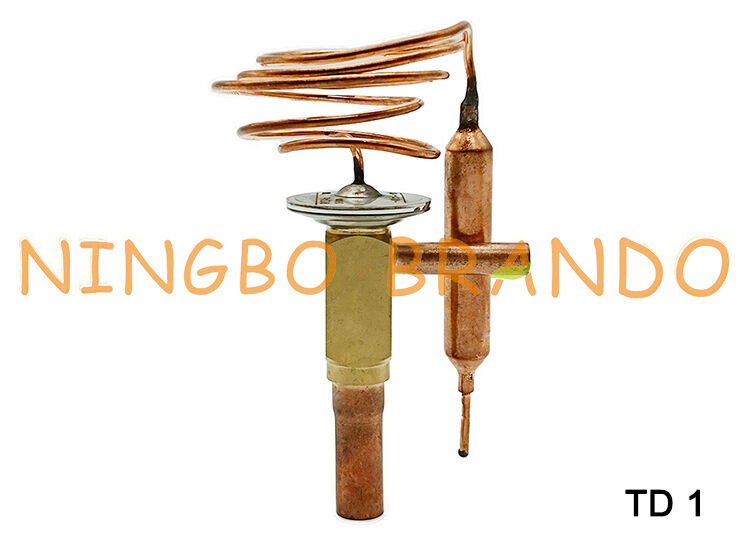

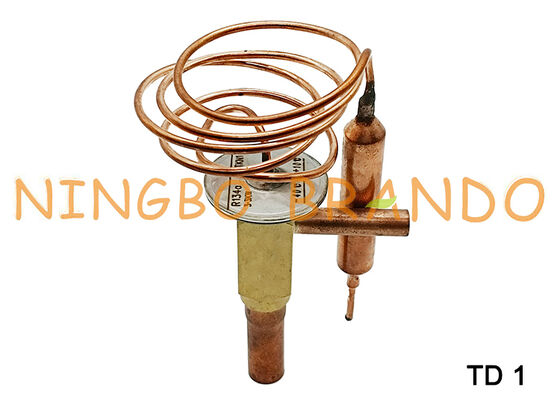

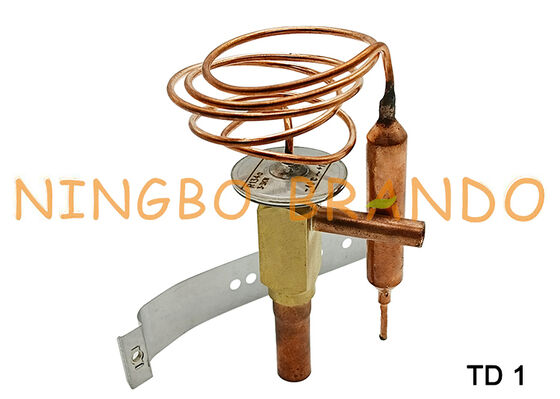

Thermostatic expansion valve Danfoss Type TD1 R134a R22 R407C R404A

TD 1 is a thermostatic expansion valve designed to regulate refrigerant injection into evaporators. The injection depends on the refrigerant superheat at the evaporator outlet, where the bulb must be placed. TD 1 is constructed for hermetic sealed systems and supplied as angleway and straightway version.

Application Examples:
1. GDM (Glass Door Merchandiser)
2. Commercial fridge and freezer
3. Heat Pump

Technical Data:

Type	Flow Direction	Port (ODF) Inlet x Outlet	Equalization	Refrigerant	Orifice No
TD 1	Angle Straight	1/4'' x 3/8'' (6mm x 10mm)	Internal	R134a R22 R404a R407C	0 1 2 3 4 5
		3/8'' x 1/2'' (10mm x 12mm)

Rated Capacity:

Orifice no	Rated capacity in tons (TR)				Rated capacity in kW
Orifice no	R134a	R22	R404a	R407C	R134a	R22	R404a	R407C
0	0.13	0.23	0.24	0.26	0.46	0.82	0.83	0.9
1	0.2	0.34	0.32	0.37	0.7	1.19	1.13	1.31
2	0.34	0.54	0.51	0.59	1.19	1.89	1.78	2.09
3	0.57	0.84	0.67	0.92	2.01	2.95	2.37	3.24
4	0.8	1.16	0.95	1.28	2.83	4.10	3.36	4.51
5	1.08	1.83	1.635	2.01	3.81	6.43	5.79	7.08

Main Dimension:

Thermostatic expansion valve Danfoss Type TD1 R134a R22 R407C R404A 0

Thermostatic expansion valve Danfoss Type TD1 R134a R22 R407C R404A 1

Our Production:

Thermostatic expansion valve Danfoss Type TD1 R134a R22 R407C R404A 2

More Expansion Valves:


Thermal Expansion Valve	Automatic Expansion Valve	Electronic Expansion Valve

Related Products:


Refrigeration Solenoid Valve	Refrigeration Ball Valve	Refrigeration Check Valve	4 Way Reversing Valve

Hot Gas Bypass Valve	Pressure Regulator	Sight Glass	Access Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
