| Place of Origin: | Ningbo, China |
| Marca: | BRANDO |
| Certificação: | CE, ISO |
| Model Number: | DIN43650AX3-CB |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Preço: | Negociável |
| Packaging Details: | Plastic Bag, Carton, Pallet |
| Delivery Time: | 10 to 15 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000pcs per month |
| Product Name: | Connector | Type: | DIN43650A |
|---|---|---|---|
| Contact Distance: | 18mm | Protection Class: | IP67 |
| First Head Pole No: | 2P+E | Second Head Pole No: | 3P+E |
| Third Head Pole No: | 4P+E | Led Indicator: | With |
| Cable Jacket Material: | PVC (Standard), PUR (Optional) | Main Cable Length: | 100cm (can be customized) |
| Head Distance: | 15cm (can be customized) | Screw: | M3x30mm |
| Max Conductor Size: | 3x1.5mm² | Max Current: | 10A |
| Contact Resistance: | ≤5mΩ | Working Voltage: | AC, DC |
| Destacar: | Triple Head Solenoid Valve Connector,DIN43650A Solenoid Valve Connector,Molded Cable DIN Valve Connectors |
||

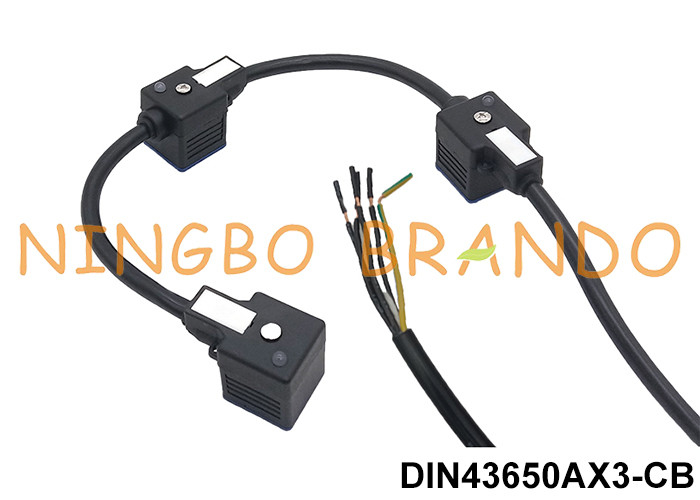

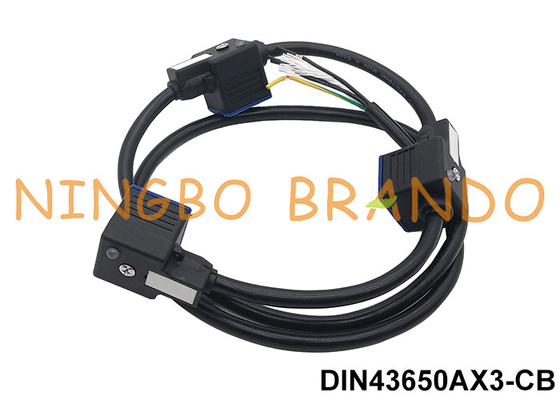

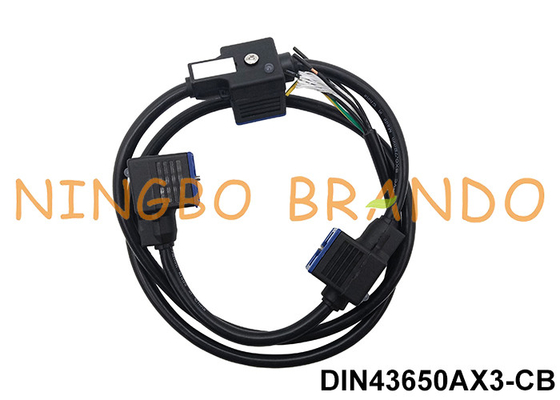

Triple Head DIN43650A Solenoid Valve Connector With Molded Cable
BRANDO produces DIN 43650 connectors and other special style connectors. DIN 43650 connectors are commonly used to supply power to solenoid valves, which widely used in Hydraulic, Pneumatic, Electrical Appliance industry, etc.
Features:
1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent
Technical Data:
|
DIN Type
|
DIN43650A
|
|
Contact Distance
|
18mm
|
|
First Head Pole Number
|
2 Poles + Ground
|
|
Second Head Pole Number
|
3 Poles + Ground
|
|
Third Head Pole Number
|
4 Poles + Ground
|
|
Max Current
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Screw
|
M3x30mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Protection Class
|
IP67
|
|
Working Voltage
|
AC, DC
|
|
Head Distance
|
15cm (can be customized)
|
|
Cable Jacket Material
|
PVC (Standard), PUR (Optional)
|
|
Main Cable Length
|
100cm (can be customized)
|
Main Dimension:
Our Production:
Related Products:
|
|
|
|
| DIN43650 Connetor | Solenoid Coil | Solenoid Armature | Solenoid Valve |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
