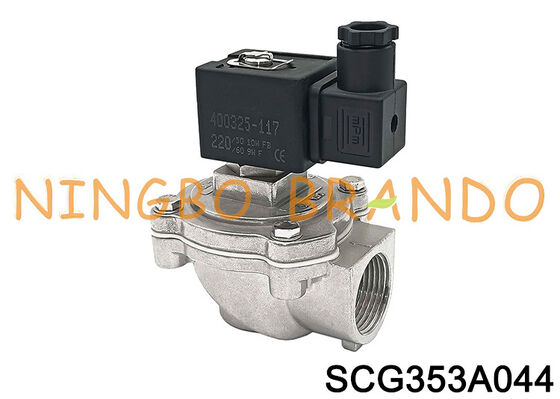

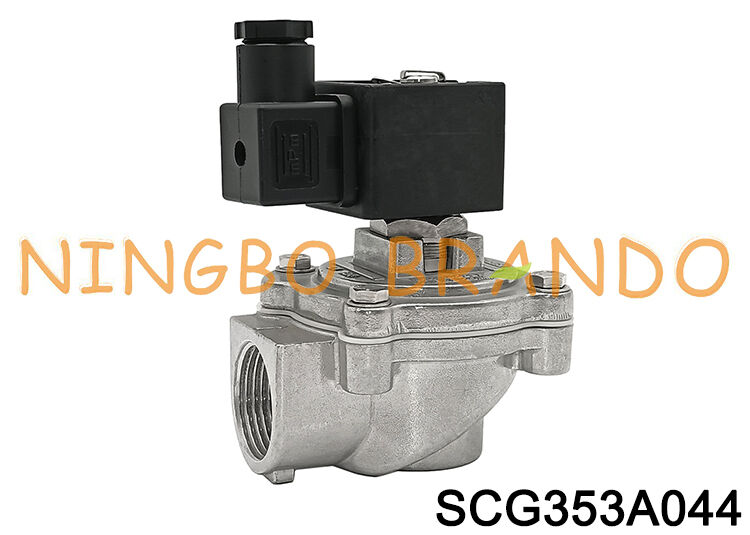

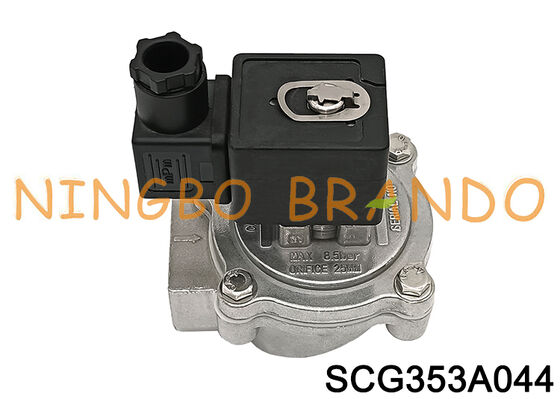

ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector
This 353 series of pulse jet valves includes models with threaded connections from 3/4'' to 2-1/2''. These valves are particular used for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters.
They have an inlet port at 90° to the outlet port.
The pulse jet valves differ in types with an integrated pilot valve or with external pneumatic control.
The special design ensures extremely fast opening, high flow and easy installation.
Optionally, we also offer versions with ATEX certified pilot valves.
A well thought-out structure and a fast delivery time for spare parts such as diaphragms, springs and coils enable simple maintenances.
Technical Data of 353 Series Pulse Jet Valves:
Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Voltages
220VAC, 24VDC
Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.
