| Lugar de origem: | CHINA |
| Marca: | BRANDO |
| Certificação: | CE |
| Número do modelo: | CA45T |
| Quantidade de ordem mínima: | 1 grupo |
|---|---|
| Preço: | negotiation |
| Detalhes da embalagem: | Caixa interna, caixa, pálete |
| Tempo de entrega: | 4-7 dias |
| Termos de pagamento: | T/T, Western Union, L/C, MoneyGram |
| Habilidade da fonte: | 165000 partes pelo mês |
| Tamanho portuário: | 1 1/2” | Tensão da bobina: | 24V, 220V |
|---|---|---|---|
| Amplitude da pressão de funcionamento: | 0,3 a 0.8MPa | Válvula rosqueada do jato do pulso: | CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T |
| Válvula do jato do pulso da porca do armário: | CA25DD, RCA25DD, CA45DD | Válvula do jato do pulso da imersão: | CA50MM, CA62MM, CA76MM, CA89MM |
| Válvula flangeada do jato do pulso: | CAC25FS, CAC45FS | Válvula piloto remota do jato do pulso: | RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T |
| Aplicação: | Filtros do cartucho, filtros do envelope, filtros cerâmicos, filtros aglomerados da fibra do metal | ||
| Realçar: | Tipo pulso Jet Valve de Goyen de CA45T,Válvula do jato do pulso de CA45T,Tipo CA45T de Goyen |
||

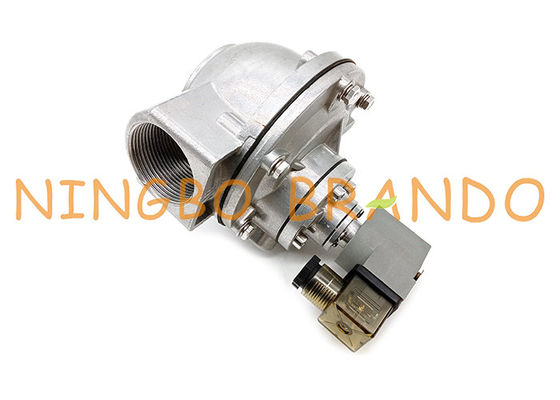

Goyen Type CA45T 1-1/2'' Diaphragm Baghouse Filter Pulse Jet Valve
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
List of Goyen Type Pulse Jet Valves:
1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T
Technical data of Right Angle Pulse Jet Valves:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Nonimal size
|
φ15
|
φ20
|
φ25
|
φ35
|
φ45
|
φ50
|
φ62
|
φ76
|
|
Port Size
|
G1/2''
|
G3/4''
|
G1''
|
G1 1/4''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
|
Working pressure
|
0.3 to 0.8MPa
|
|||||||
|
Temp. range
|
-5℃ to 55℃
|
|||||||
|
Relative humidity
|
≤85%
|
|||||||
|
Working
medium
|
Compressed clean air
|
|||||||
|
Voltage
|
24VDC, 220VAC
|
|||||||
Dimension of CA45T Goyen Type Pulse Jet Valve:
Video of CA45T Goyen Type Pulse Jet Valve:
Detail images of Goyen Type Pulse Jet Valves:
More Goyen Type Pulse Valve For You to Choose:
Threaded Type Immersion Type Dresser Nut Type Flanged Type
RCA Series Solenoid Coil Armature Assembly Pulse Controller
Installation:
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
